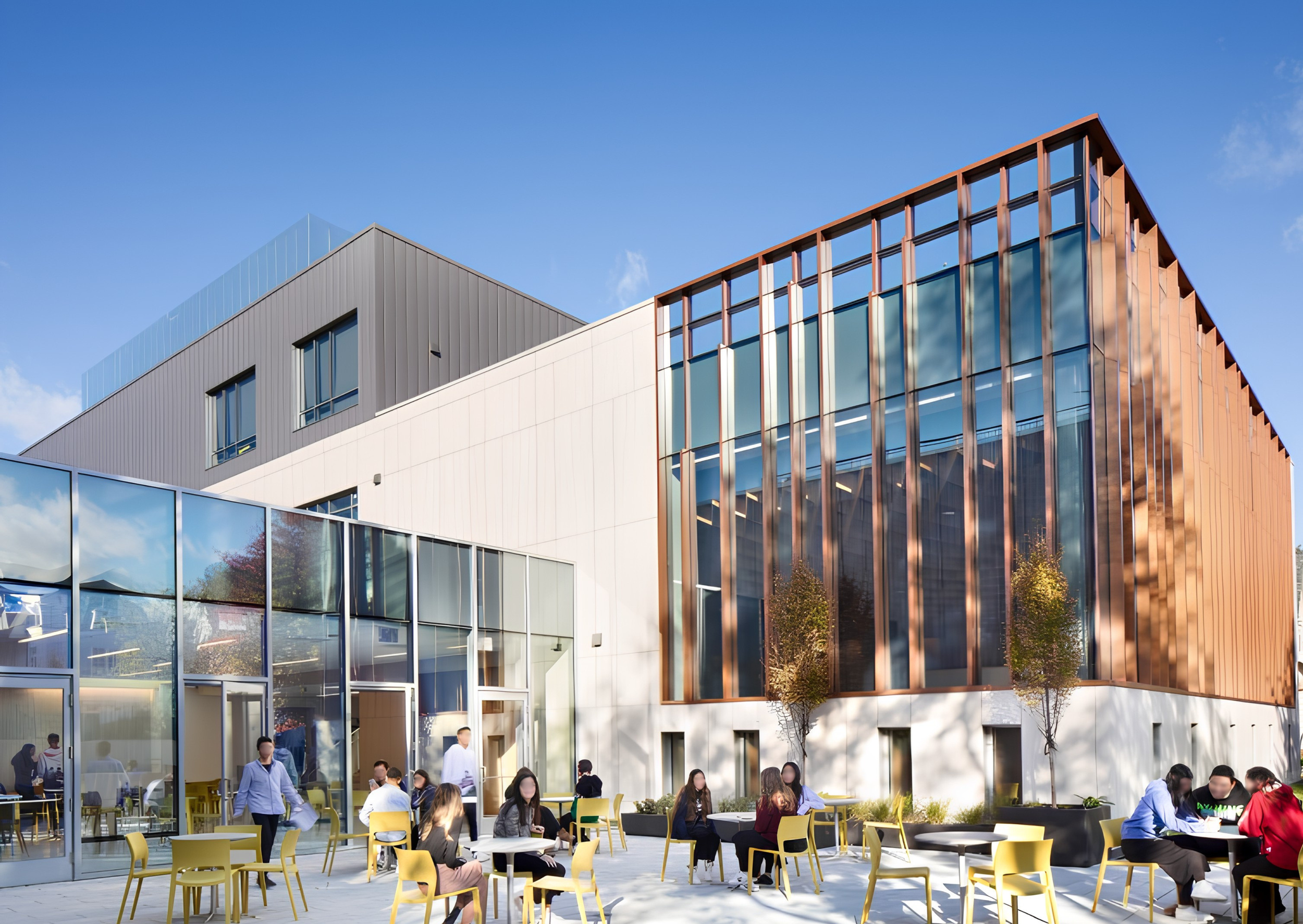

Rainscreen Joints and Drainage Planes: Multi-Material Facade Coordination
Most commercial facades incorporate multiple cladding materials within the same elevation, making joint detailing and drainage plane continuity critical at every transition. Within a panelized rainscreen system, long-term performance depends less on any single material than on how well the entire facade assembly is coordinated during design. Decisions made independently across cladding systems can leave flashing details, WRB transitions, and movement joints unresolved until shop drawings or installation.
Integrating design assist, engineering, shop drawings, and fabrication within a single facade scope allows these interface conditions to be resolved early and documented consistently. This is the approach Lavada brings to multi-material facade projects.
Rainscreen Joint Detailing Across Dissimilar Materials
Open Joints vs. Sealed Joints at Material Transitions
Within a single cladding system, rainscreen joint logic can usually be standardized. At a material transition, that same decision affects movement accommodation, flashing alignment, cavity depth, sealant compatibility, and installation sequencing. A sealed joint between an aluminum panel and a fiber cement plank, for instance, must reconcile different coefficients of thermal expansion, different substrate preparation requirements, and different movement ranges, all within one coordinated detail.
ASTM E331 water penetration criteria assume a consistent assembly. When the assembly changes at a material transition, the test baseline no longer applies uniformly. The joint design at that interface needs to be resolved in the shop drawings with both systems accounted for, not improvised in the field. This is where Lavada begins coordination: mapping joint conditions across every material interface before fabrication starts.
Managing Differential Thermal Movement
Coordinating differential thermal movement is a critical part of detailing multi-material facade systems. Aluminum composite panels, extruded aluminum, terracotta, fiber cement, and other cladding materials expand and contract at different rates, requiring joint details that accommodate movement without compromising weather performance or appearance.
These conditions become even more important when continuous insulation requirements under ASHRAE 90.1 influence subframing depth and attachment methods across different facade zones. Through coordinated shop drawings and early Design Assist, Lavada helps evaluate these interface conditions before fabrication, supporting consistent joint geometry, constructability, and long-term facade performance.
Coordinating rainscreen joints across multiple cladding types starts with the right facade partner. Get in touch
Drainage Plane Continuity When Attachment Systems Change
Maintaining WRB Continuity Across Changing Subframing Systems
Different cladding systems often require different sub-girt depths, bracket layouts, and attachment methods. At material transitions, maintaining continuous water-resistive barrier (WRB) protection requires these systems to be detailed as a single coordinated assembly rather than as independent scopes.
Coordinated shop drawings help align WRB laps, attachment systems, and transition details before construction begins, reducing coordination issues in the field. While ASTM E2357 verifies the performance of the completed air barrier assembly, achieving continuity depends on coordinated detailing from the outset.
Flashing and Penetration Coordination at Transition Zones
Transition zones between cladding types concentrate penetrations: head flashings, sill flashings, through-wall terminations, and mechanical openings often cluster at floor lines and occupancy changes. When design-assist coordination identifies these concentrations early, the flashing sequence can be integrated into the shop drawing package rather than addressed piecemeal through RFIs during installation.
Maintaining drainage plane continuity across these transitions depends on resolving interface conditions through coordinated detailing of the rainscreen assembly.
What Integrated Coordination Resolves Before It Reaches the Field
Aligning Fabrication Tolerances Across Multiple Cladding Scopes
A single facade contractor managing the shop drawing package across all cladding types on a project can align fabrication tolerances at every material interface. Panel dimensions, joint widths, and anchor locations are resolved in one model, not reconciled between separate submittals after the fact. This eliminates the tolerance stack-up that causes fit problems at transitions and keeps installation sequencing on track.
This matters most at the interfaces between cladding zones, where even small discrepancies in anchor point placement or joint width can compound across a full elevation. Coordinated shop drawings resolve these discrepancies before panels are fabricated, reducing the RFIs and field modifications that otherwise delay installation and inflate project costs.
Reducing RFIs Through Early Building Envelope Coordination
Most RFIs related to rainscreen joints and drainage plane transitions trace to the same root cause: coordination that happened too late or not at all. When building envelope engineering, shop drawings, and fabrication planning are integrated under one scope, the decisions that typically generate RFIs, including flashing sequences, joint sealant selections, and sub-girt transitions, are resolved during the design-assist phase. The project team receives a complete, coordinated set of details rather than a series of trade-specific submittals that need to be cross-checked for conflicts.
Joint and Drainage Plane Coordination Starts With the Right Scope
Rainscreen joint detailing and drainage plane continuity are coordination problems. They are best resolved by a facade partner whose scope extends across design-assist, engineering, shop drawings, fabrication, and installation.
Lavada works across a broad range of cladding materials, including aluminum composite, extruded aluminum, fiber cement, terracotta, stone, HPL, and UHPC, and brings the coordination depth to manage complex multi-material assemblies from early design-assist through fabrication and field installation.
Lavada coordinates rainscreen joint detailing and drainage plane continuity across multi-material facade assemblies.
Get in touchFrequently Asked Questions
Do rainscreen joints need to be sealed at every material transition?
Not necessarily. The appropriate joint strategy depends on the cladding materials, exposure conditions, movement requirements, and drainage design. In many assemblies, properly detailed open joints can perform as effectively as sealed joints. The key is that the joint strategy is established during Design Assist and documented in the shop drawings rather than determined during installation.
How is drainage plane continuity maintained across multiple cladding systems?
Drainage plane continuity depends on coordinated detailing across the entire rainscreen assembly. Water-resistive barrier transitions, flashing, attachment systems, and cavity depths should be resolved together so the drainage path remains continuous across changes in material and subframing.
When should multi-material facade coordination begin?
Coordination is most effective during design development, before facade systems are finalized and shop drawings begin. Early coordination allows interface conditions, movement joints, attachment strategies, and drainage details to be resolved while changes are still practical and cost-effective.
How does Design Assist improve multi-material facade coordination?
Design Assist allows interface conditions between facade systems, structure, glazing, and waterproofing to be coordinated before fabrication documents are developed. This approach reduces RFIs, improves constructability, and supports more efficient project delivery through coordinated engineering and shop drawings.
When should a facade contractor be involved on a multi-material rainscreen project?
The greatest value comes during the design phase, when attachment strategies, material transitions, movement accommodation, and detailing can still be optimized. Early involvement helps identify coordination issues before they affect engineering, fabrication, or construction.
