BIM Coordination on Complex Envelope Projects

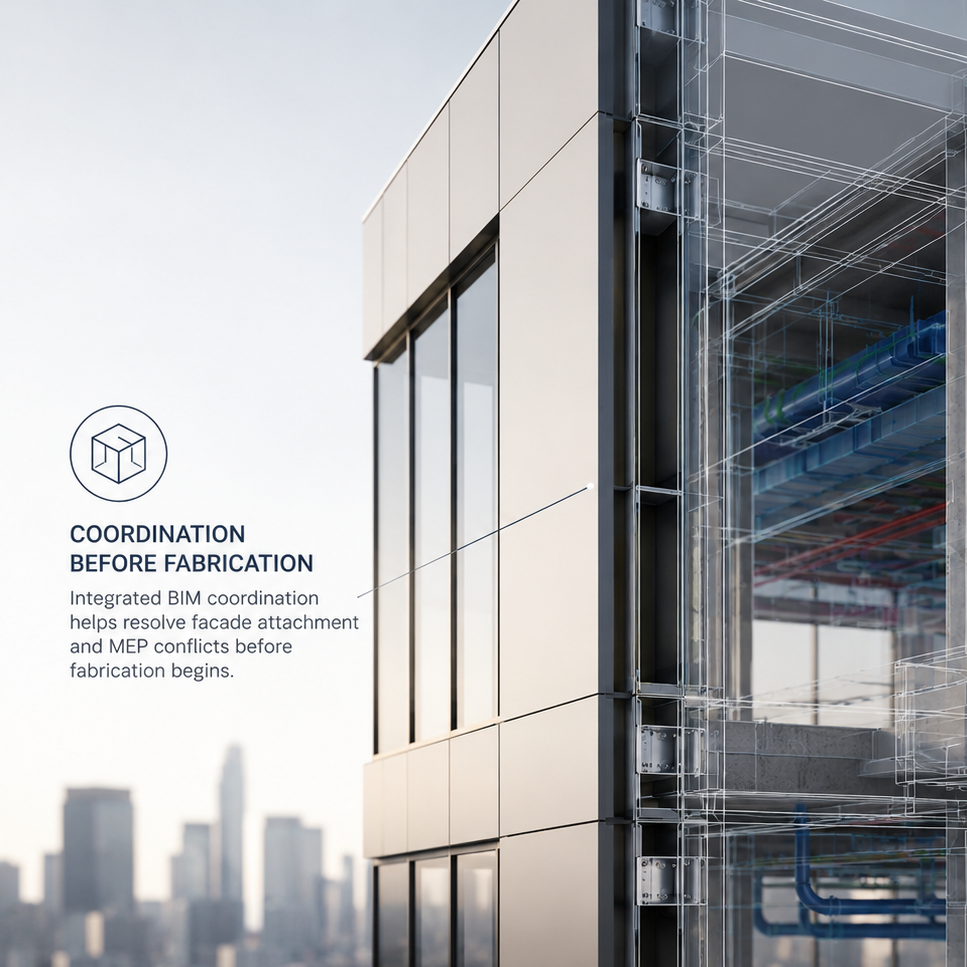

On complex building envelope projects, coordination challenges often occur where facade systems interface with structure, glazing, and MEP. Through Design Assist, engineering, and BIM coordination, Lavada helps resolve these conditions before shop drawings and fabrication begin. This article examines BIM's role in reducing coordination risk on commercial facade projects.
Where Facade Clashes Actually Come From
Facade clashes on complex projects tend to concentrate at a small number of predictable interface conditions. Understanding where they originate is what makes coordination efficient rather than reactive.
Structural Attachment Conflicts
Embed plates, weld plates, and anchor conditions are designed to structural requirements without always accounting for the facade attachment geometry. When the facade contractor models the attachment system against the structural drawings, conflicts at slab edges, beam flanges, and column conditions become visible before they become field problems. This applies across the full range of rainscreen cladding systems Lavada works with, from ACM and fiber cement to terracotta, stone, and UHPC, where each material introduces its own attachment geometry, tolerance requirements, and interface conditions. The same applies to deflection and drift allowances: the structural engineer designs to code requirements, but the facade contractor needs to verify that the attachment system accommodates the movement at each condition.
MEP Penetrations and Envelope Continuity
Mechanical, electrical, and plumbing systems penetrate the building envelope at louvers, through-wall sleeves, and equipment supports. Each penetration is a potential failure point for air, water, and thermal continuity. When the facade contractor is not part of the coordinated model, these penetrations are often detailed generically, leaving the interface condition unresolved until the wall assembly is under construction. BIM coordination places those conditions in context of the actual facade assembly, so the sleeve size, flashing detail, and sealant termination can be resolved in advance.
Working through a complex envelope scope and evaluating coordination workflows?
Get in touch
What BIM Coordination Covers on a Facade Scope
Facade BIM coordination goes beyond clash detection. At its most useful, it functions as a continuous alignment process between the facade contractor's fabrication requirements and the evolving project model.
Clash Detection Across Trades
On facade projects, the most common hard clashes involve anchor geometry, frame clearances at slab reveals, and mechanical equipment that encroaches on the cladding plane. Identifying these in the model is substantially less disruptive than resolving them in the field after fabrication is underway. Soft clashes, clearance violations that do not represent physical interference but indicate tolerance or access problems, are equally important for facade work, where installation sequencing depends on consistent access to attachment zones.
Sill, Jamb, and Head Condition Coordination
Glazing and curtainwall interfaces with the surrounding cladding system require precise coordination at every transition. Sill conditions must accommodate drainage, thermal break continuity, and attachment to the primary structure. Head conditions must account for deflection, sealant joint sizing, and compatibility between the curtainwall frame and the adjacent panel system. These conditions are difficult to resolve through 2D drawings alone; a coordinated model makes the geometry legible to all parties and reduces the likelihood of detailing errors reaching fabrication.
Tolerance Stacking and Fabrication Alignment
Nominal dimensions in architectural drawings accumulate through structure, framing, and finish. The facade contractor absorbs the residual tolerance. With the coordinated BIM model, Lavada verifies the as-designed panel sizes remain within the fabrication tolerance range after accounting for structural variation, and flags conditions where the geometry requires a field-adjustable detail rather than a fixed one. Identifying those conditions in the model is significantly less expensive than discovering them during installation.
How BIM Supports Accurate Fabrication Scheduling
Fabrication scheduling is where BIM coordination has the most direct impact on project delivery. The connection between model quality and schedule performance is concrete: when open coordination items remain at the time shop drawings are issued, those items generate RFIs. Each RFI adds review time, and on long-lead components, that review time directly affects when fabrication can begin.
Model-to-Shop Drawing Handoff
A well-coordinated BIM model substantially reduces the gap between design intent and fabrication-ready documentation. Facade shop drawings developed from a coordinated model carry fewer open items, move through the review and approval cycle more efficiently, and produce fabrication dimensions that reflect actual field conditions rather than nominal design assumptions. The result is a cleaner submittal package and a shorter approval cycle, which protects fabrication start dates.
Sequencing and Procurement Alignment
For custom or long-lead facade components, such as specialty extrusions, unitized curtainwall, or engineered attachment hardware, procurement lead times are fixed. The only variable is when the purchase order can be released, and that depends on how quickly the shop drawings can be approved. BIM coordination that resolves interface conditions early compresses the coordination-to-approval timeline and creates the conditions for earlier procurement. On projects with aggressive schedules, that compression is what keeps installation on track.
Who Needs to Be in the Model and When
The effectiveness of facade BIM coordination depends as much on timing as on technical capability. A coordinated model that the facade contractor joins at construction documents has limited value; the structural and MEP systems are largely fixed, and the window for influencing interface conditions has closed.
Facade Contractor Involvement at Design Development
Entry at design development gives the facade contractor access to the model when structural systems are still being refined and MEP routing is not yet fully committed. That window is when attachment strategies, penetration conditions, and transition details can be resolved without triggering change orders or redesign. Per AIA guidelines on integrated project delivery, early specialty contractor involvement in the coordinated model consistently reduces coordination-related schedule impacts on complex building envelopes.
Coordinating with the Structural Engineer and Curtainwall Consultant
On projects with both a facade contractor and a curtainwall consultant, BIM coordination requires a clear protocol for model ownership and RFI routing. The facade contractor needs real-time access to the structural model to verify attachment geometry, and a direct line to the curtainwall consultant for glazing interface conditions. When that protocol is established in the design-assist agreement rather than improvised during construction documents, coordination moves through the project team with fewer delays and fewer unresolved items reaching the field.
The Coordination Foundation for Complex Envelope Work
When BIM coordination is structured from design development through shop drawing issuance, the conflicts that generate RFIs, field corrections, and compressed fabrication windows get resolved in the model instead of on site.
Lavada brings this approach to every complex envelope scope it takes on. The 1 Great Jones Alley project required five years of BIM modeling, detailed planning, and custom jig development for a fully adjustable facade hanging system built to micron-level precision. That level of coordination is not exceptional. It reflects the standard Lavada applies to any project where the geometry, the trades, and the schedule demand it.
Integrated BIM coordination for complex envelope projects across the U.S.
Get in touchFrequently Asked Questions
At what stage should the facade contractor enter the BIM model?
The facade contractor should be involved no later than design development, and ideally during schematic design on complex envelope scopes. Early entry allows the facade team to flag attachment conflicts, interface conditions, and tolerance issues before the structural and MEP models are locked.
Entering at construction documents, which is when most teams bring in the facade contractor, compresses the coordination window and increases the likelihood of RFIs and field adjustments that could have been resolved earlier.
What types of conflicts does facade BIM coordination typically catch?
The most common conflicts caught through facade BIM coordination include structural anchor conflicts where embed conditions conflict with slab edges or beam flanges, MEP penetrations that breach the air or water barrier plane without proper detailing, glazing and curtainwall frame conflicts at slab reveals, and tolerance stack-up issues where nominal dimensions from multiple trades compound into field misalignments.
These categories account for the majority of facade RFIs on complex commercial projects and are substantially less expensive to resolve in the model than in the field.
How does BIM coordination reduce RFIs on facade projects?
BIM coordination reduces RFIs by resolving spatial conflicts in the model before they reach the field. When the facade contractor maintains a coordinated model that references structural, MEP, and glazing elements, discrepancies are identified and resolved through the design team rather than through field RFIs.
The result is a construction document set that reflects actual conditions, rather than one that requires ongoing correction during installation.
Can BIM coordination help with facade fabrication lead times?
Yes. When the BIM model is developed to a fabrication-ready level of detail, shop drawings can be issued with fewer open coordination items, which shortens the review and approval cycle. For long-lead facade components, including custom extrusions, specialty panels, or unitized curtainwall, the ability to release fabrication drawings earlier directly affects procurement and delivery schedules.
Projects where BIM coordination is deferred typically experience compressed fabrication windows and increased schedule risk as a result.
